| Material of Construction | ||
|---|---|---|
| Body | Extruded Aluminium Alloy - Hard Anodised | |
| End Cap | Die Cast Aluminium - Powder Coated / Anodised | |
| Piston | Die Cast Aluminium | |
| Pinion & Shaft | Alloy Steel - Electroless Nickel Plated | |
| Shaft Bearings and Piston Guides | Derlin / PTFE | |
| Piston O Rings & Seal | Nitrile Butadiene Rubber / Silicon | |
| Spring | Spring Steel - Grade 3 | |
| Fasteners | Stainless Steel | |
| Actuator Holding Bracket | Carbon Steel / Stainless Steel | |
| Functional Details | ||

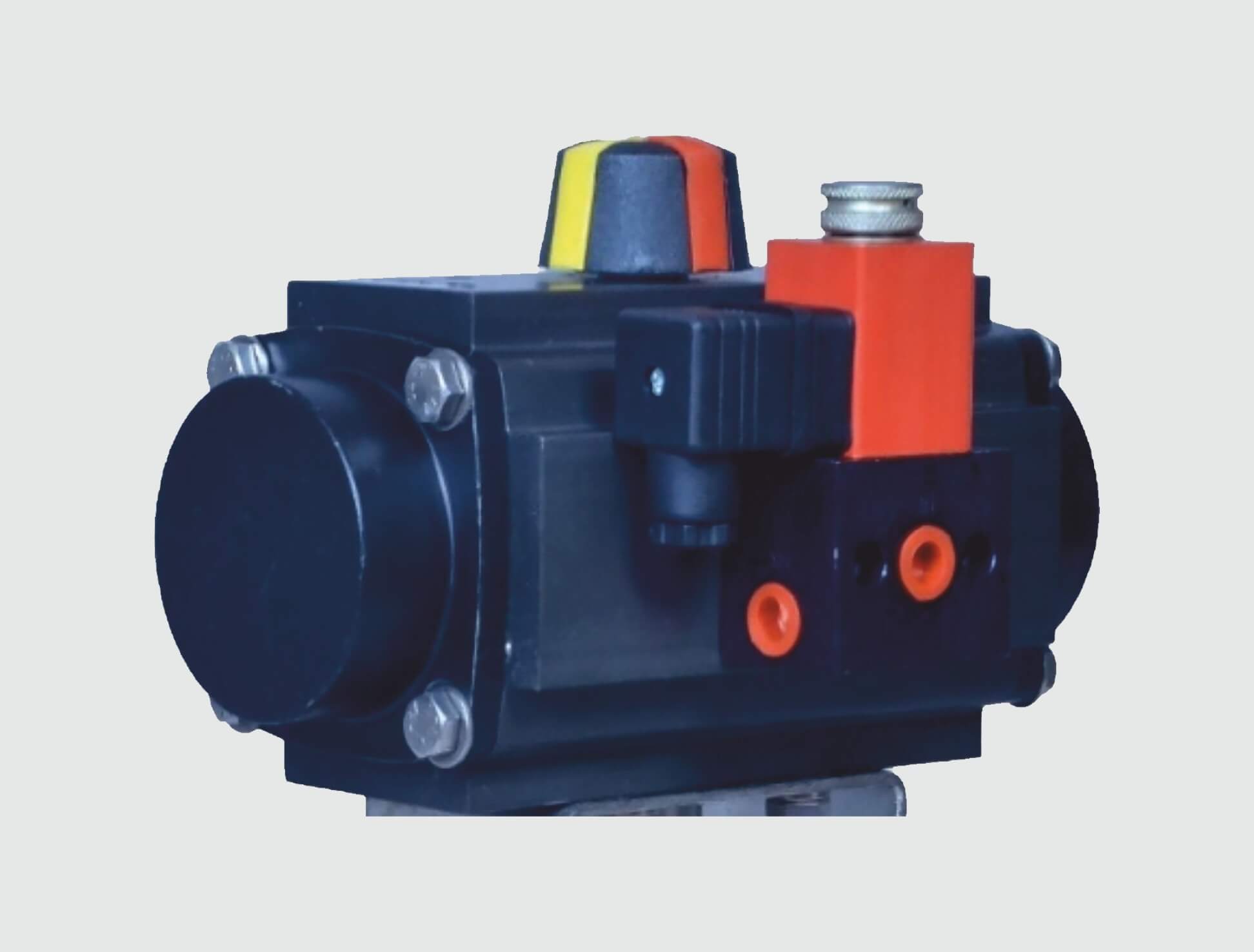

| Actuator Operation | Pneumatically operated - 0 to 90 Deg Rotation | |

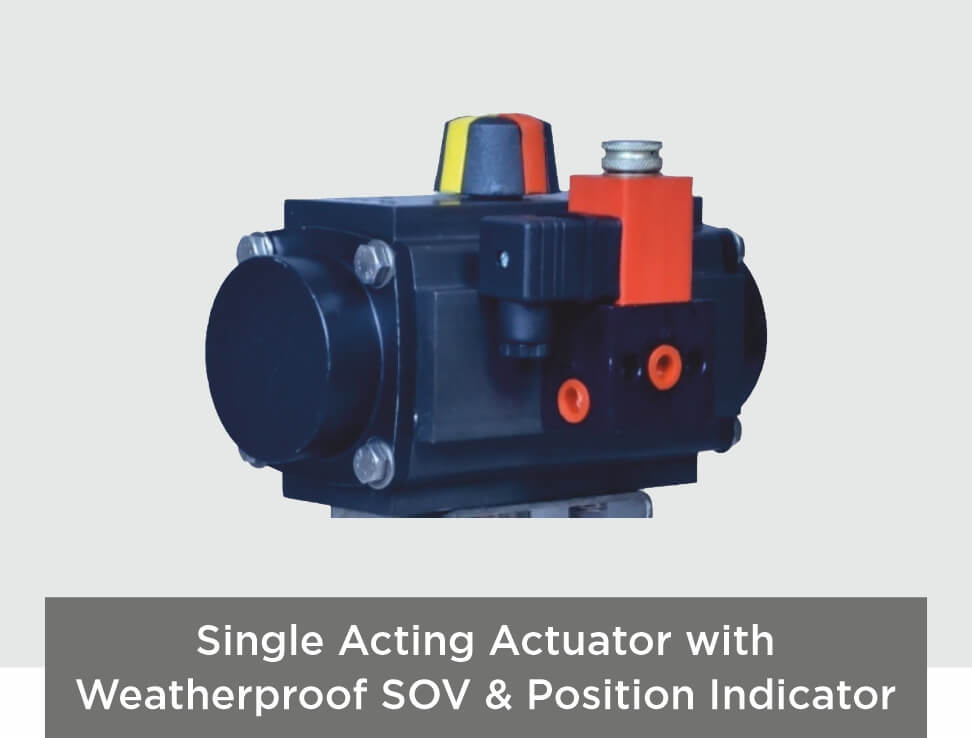

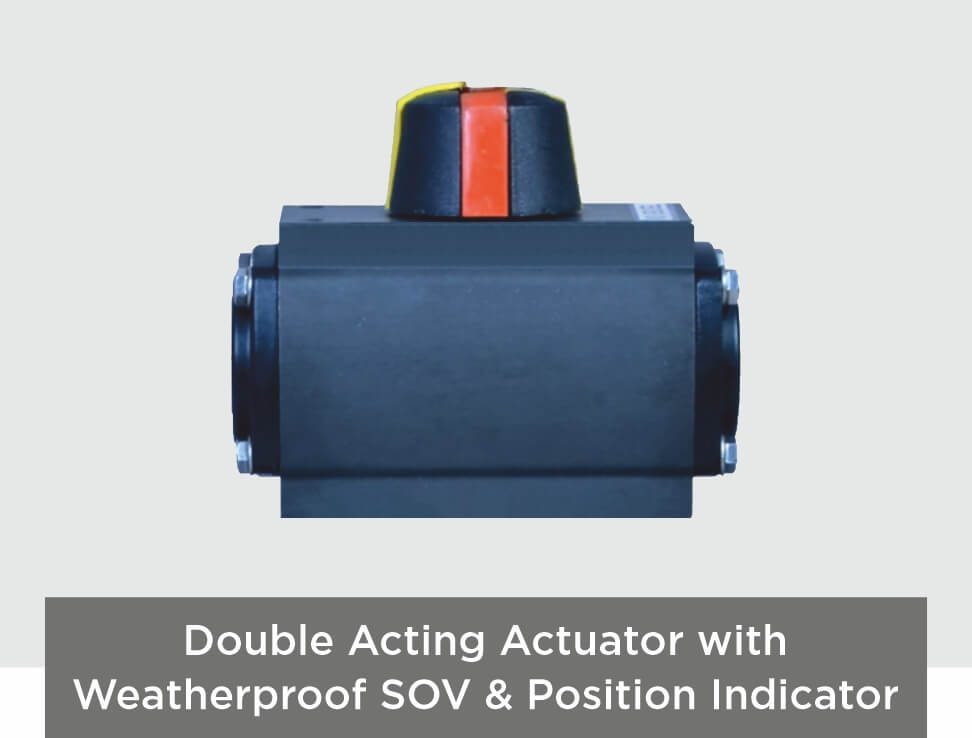

| Actuator Action | Single and Double Acting | |
| Max Torque in Nm | Up to 430 | |
| Operating Air Pressure Range in Bar | 4 to 8 | |
| Operation Temperature Range in Deg C | -20 to 80 | |
| SOV Type and Coil Voltage | Namur 24 V DC / 230 V AC Weatherproof / Flameproof | |
| SOV MOC | Aluminium / As per requirement | |

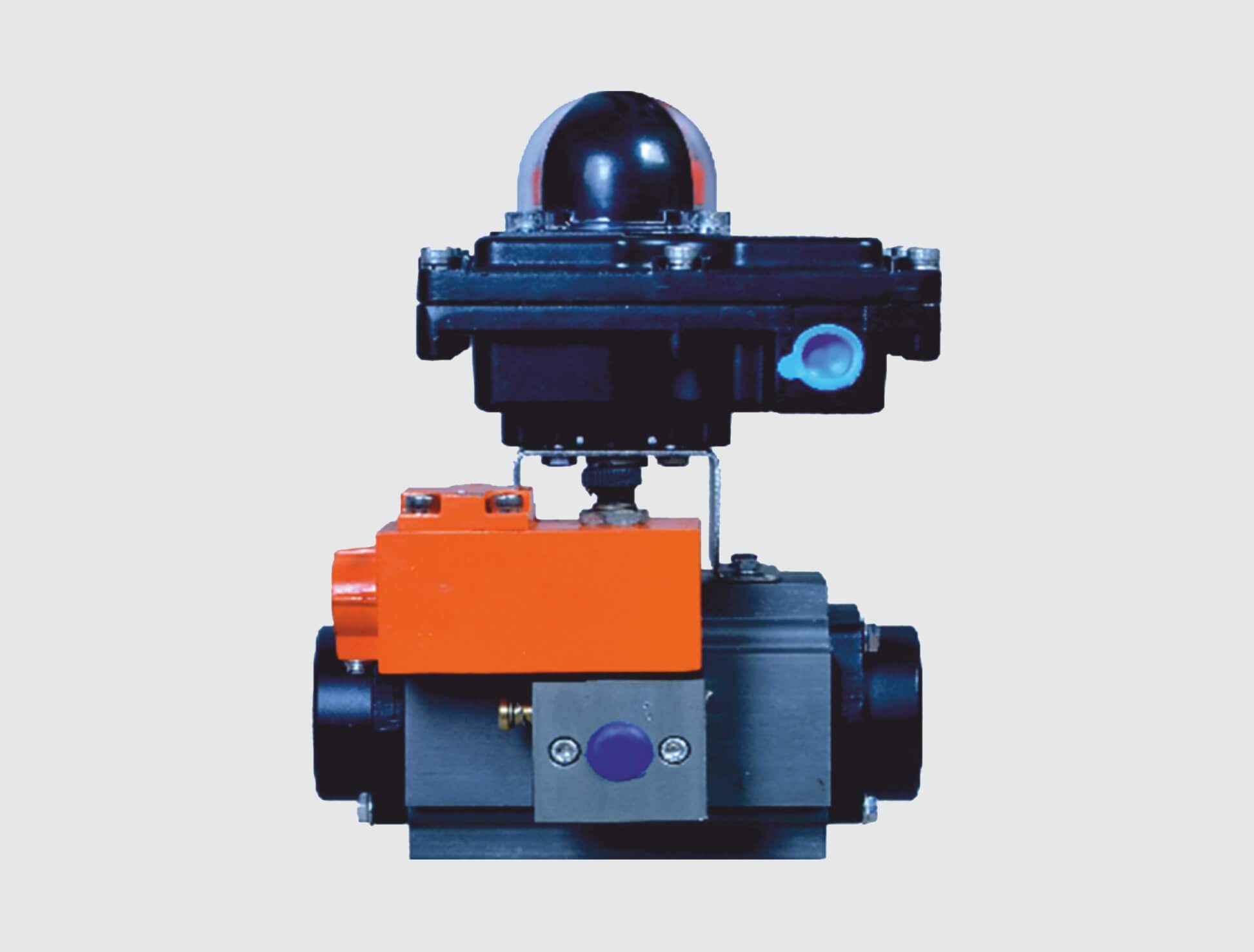

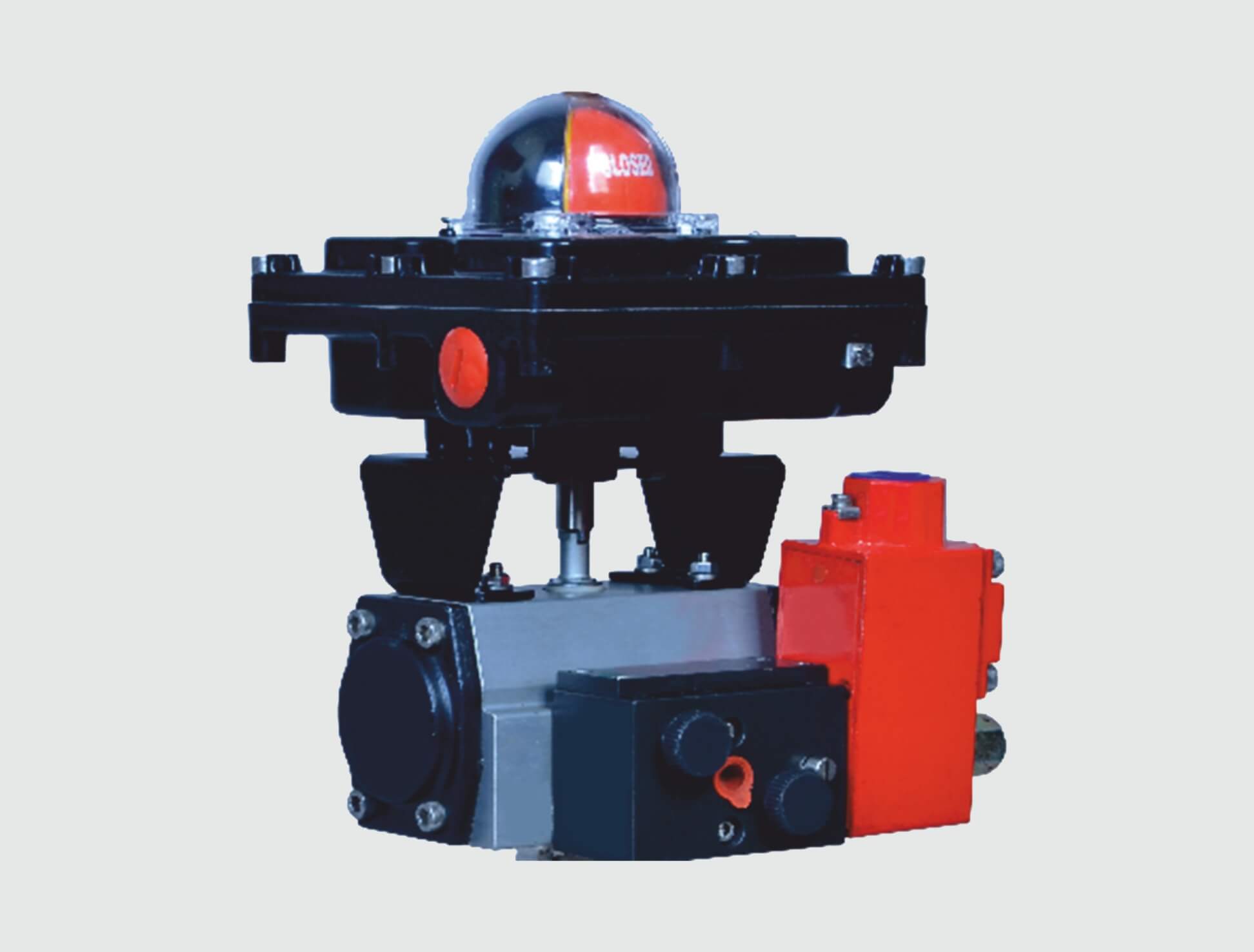

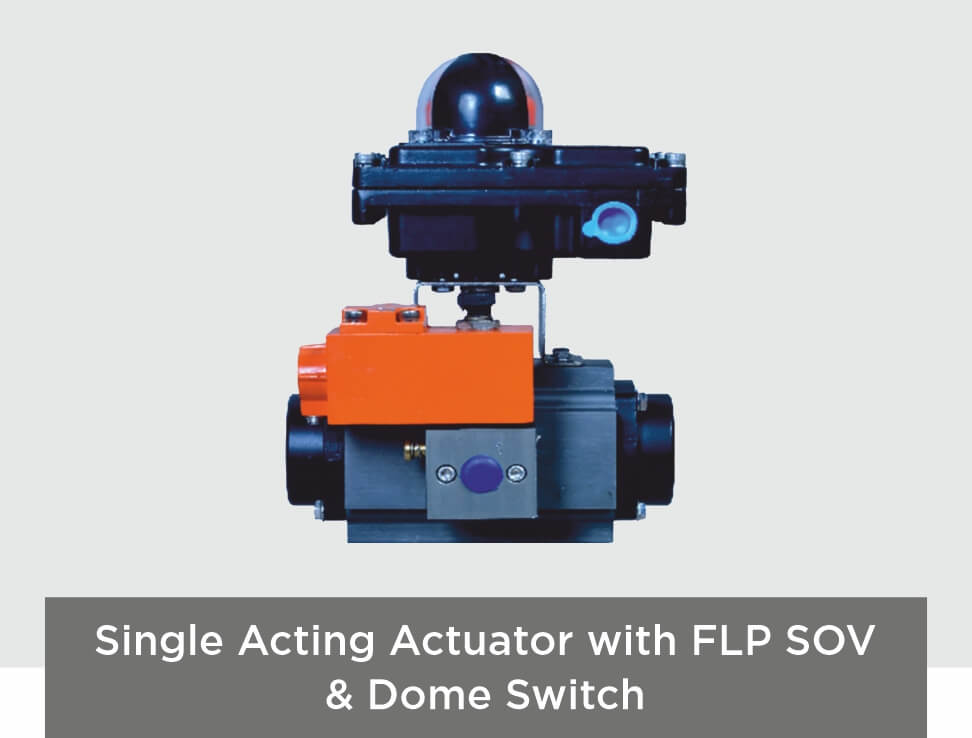

| Valve Positioner | Standard Position Indicator / Weatherproof / Flameproof Dome Switch with Open & Close Feedback Sensors / Switches |
|
| Open / Close Feed back sensor / Switch | P + F / Honeywell / As per requirement | |
| Dome Switch MOC | Aluminium | |
