| Design |
|
BS 5351 |
| End to End |
Flange End |
ASME B16.5 |
| Socketed End |
ASME B16.11 |
| Screwed End |
ASME B16.11 |

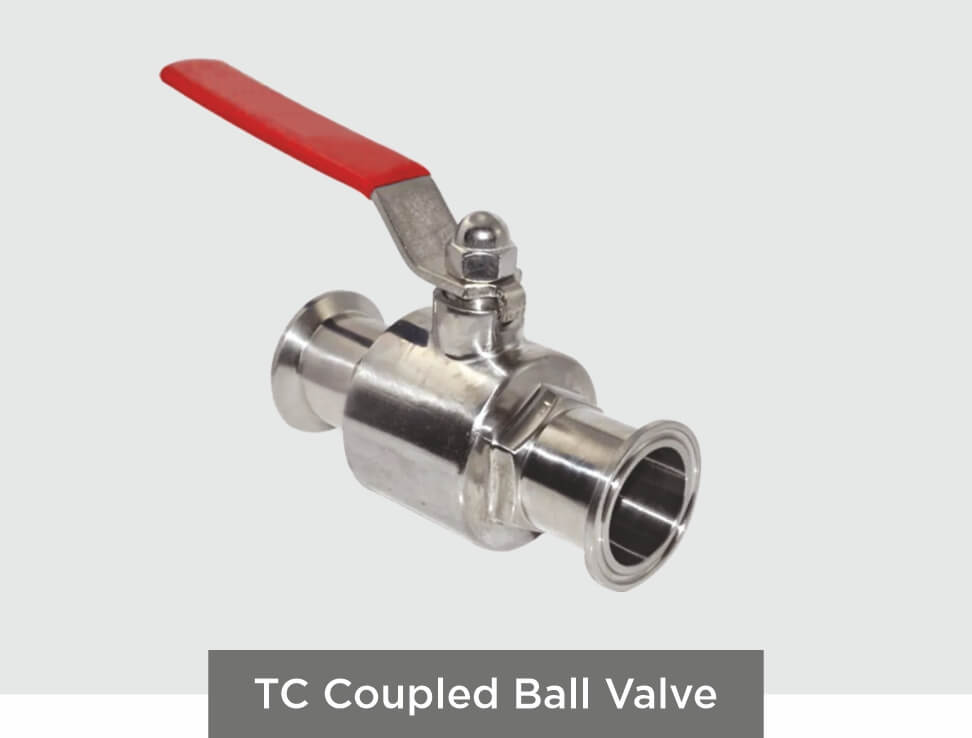

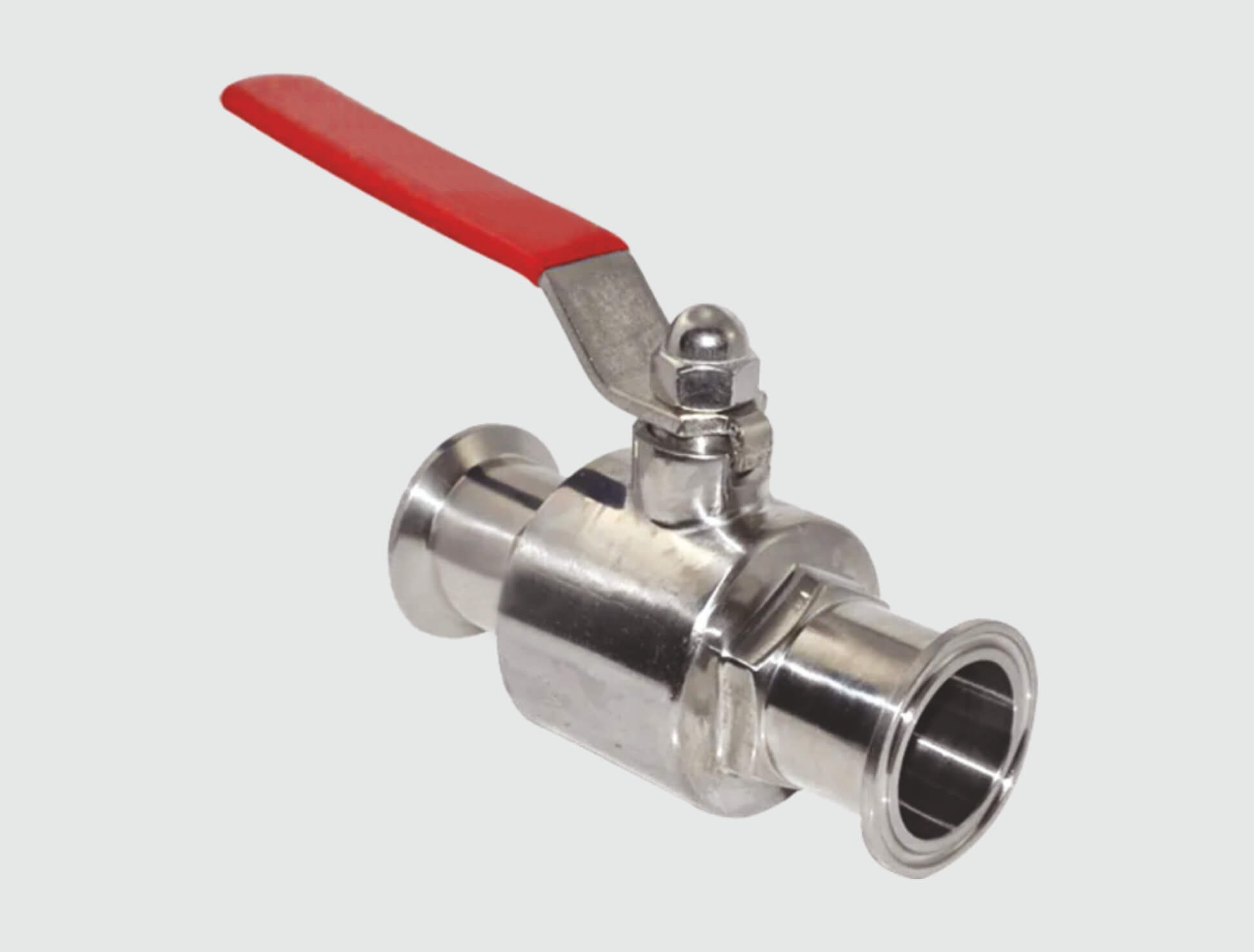

| TC End |
ISO 2852 |
| Face to Face / End to End Dimension |
Flange End |
ASME B16.10 |
| Pressure testing |
API 598 / BS 5146 |
| Material of Construction |
Body & End Connection |
ASTM A216 Gr. WCB / ASTM A351 Gr. CF8 / ASTM A351 Gr. CF8M |
`
| Ball |
ASTM A351 Gr. CF8 / ASTM A351 Gr. CF8M |
| Stem |
AISI 304 / AISI 316 |
| Stem Thrust Seal |
GFT / PTFE / RPTFE / CFT |
| Stem Packing |
GFT / PTFE / RPTFE / Graphite |
| Seat |
GFT / PTFE / RPTFE / CFT |
| Stud / Bolt / Nut |
AISI 304 / AISI 316 |
| Operation |
Hand Lever (MS with PVC Grip) / Gearbox / Actuator |
| Construction Type |

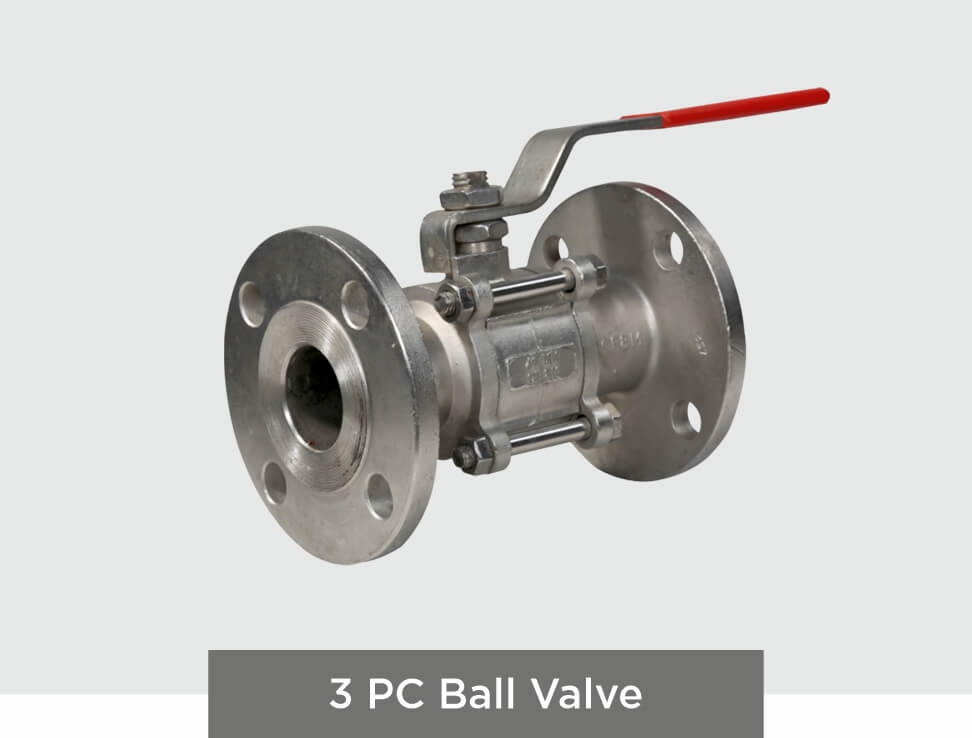

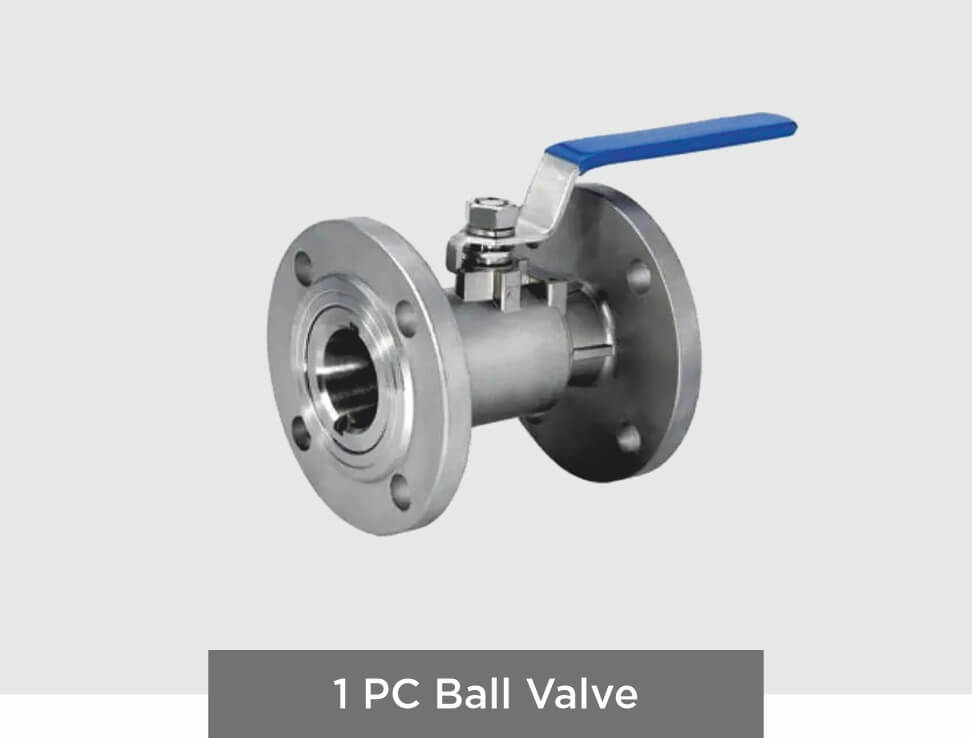

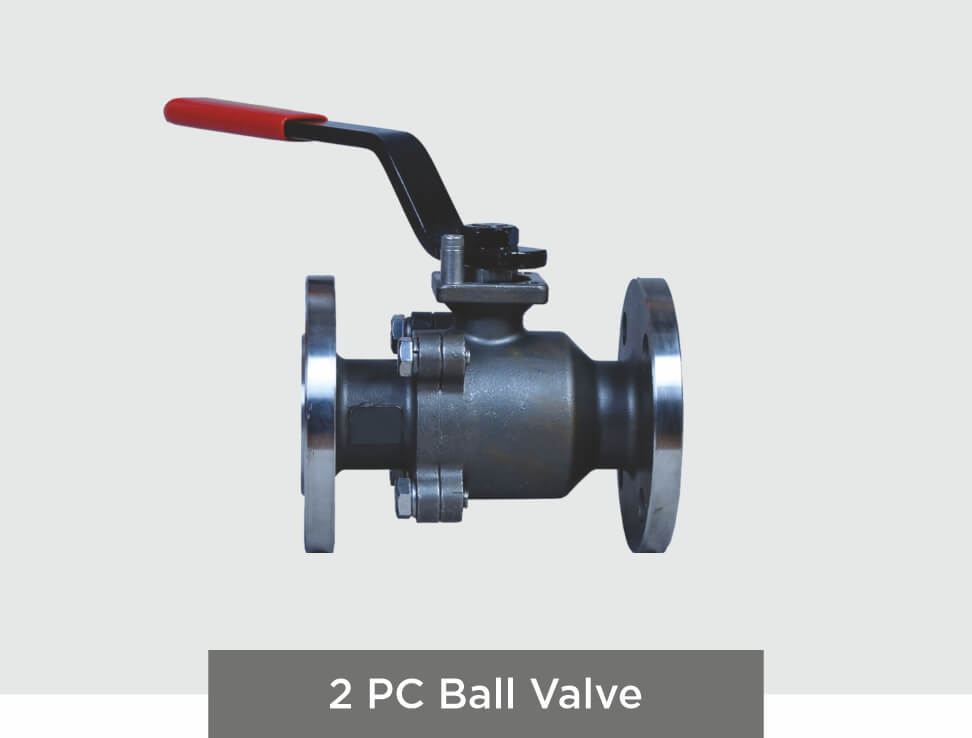

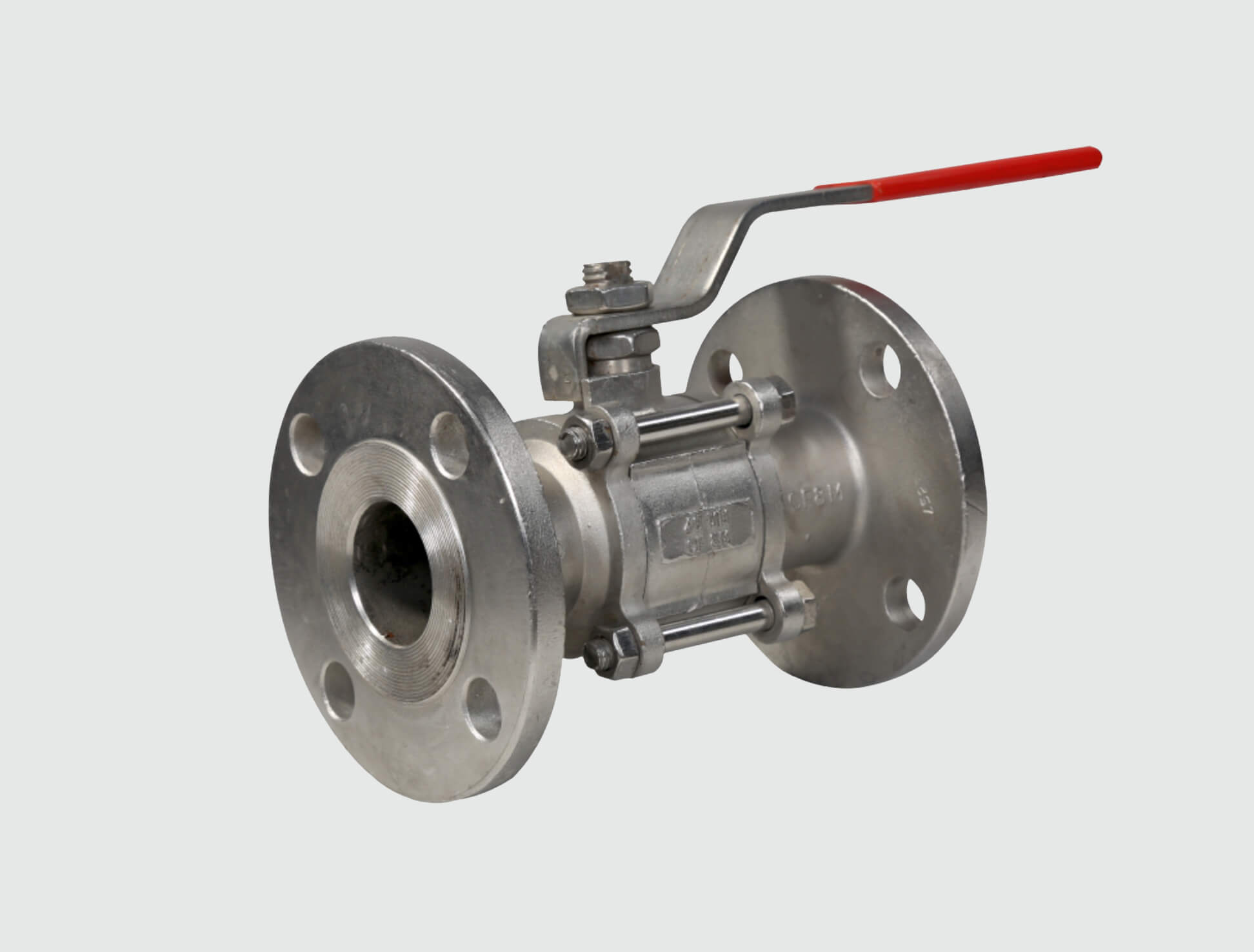

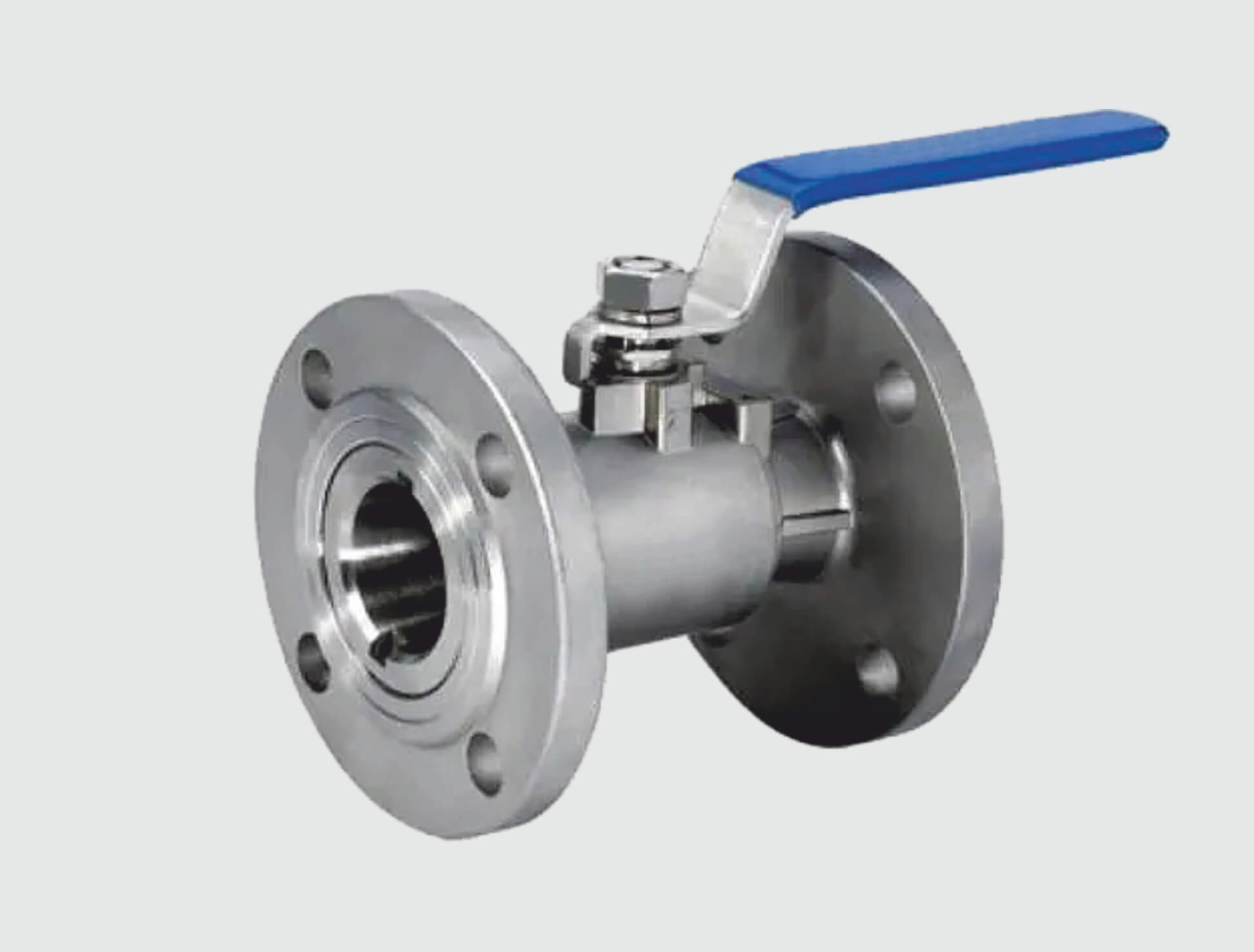

Three Piece / Two Piece / Single Piece Ball Valve |
| Rating |
Class 150 / 300 / As per requirement |
| Bore |
Full Bore |
| Size |
15 to 200 NB |
